20116 Fisher 1.5x10 Lift Cylinder 1 Hole Minute Mount 1 Pipe Thread RD HD EZ-V SA13

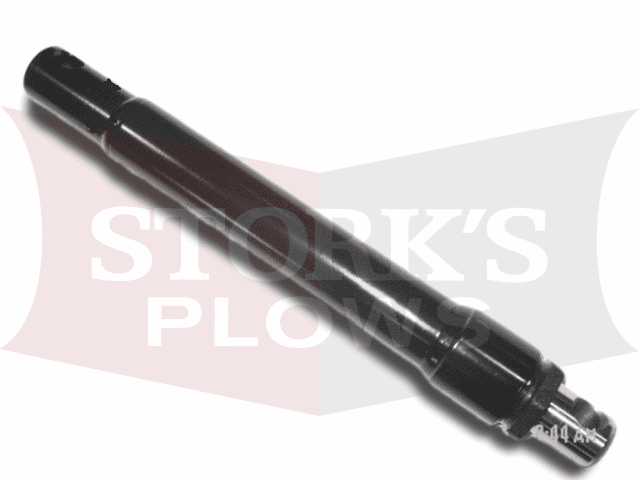

A New Aftermarket Fisher Lift Cylinder. This one was commonly used with the belt drive MM1 plows. It was also the lift cylinder on the MM1 EZ-V plow. There was more than one option through the years, so make sure it is the correct one (we have others, if  this is not the one needed). The Fisher is part #20116 and the aftermarket is #1304305.

This has 1" pin holes.

The cylinder is a 1.5"x10". The 10" is the movement of the cylinder.

In the closed position it measures 17" from center to center on the hole.

From end to end the tank including the nut is 16.5".

This has the normal 1/4" pipe thread hole for a hose on the side of the cylinder.
