28028 Western Fisher 4 Port Wiring Kit Isolation Module Truck Side Light Harness 02-09 Envoy Trailblazer
Western and Fisher Wiring Kit 28028.
The Truck Side Light Wiring Kit for trucks 02-2009 GMC Envoy, and Chevy Trailblazer.

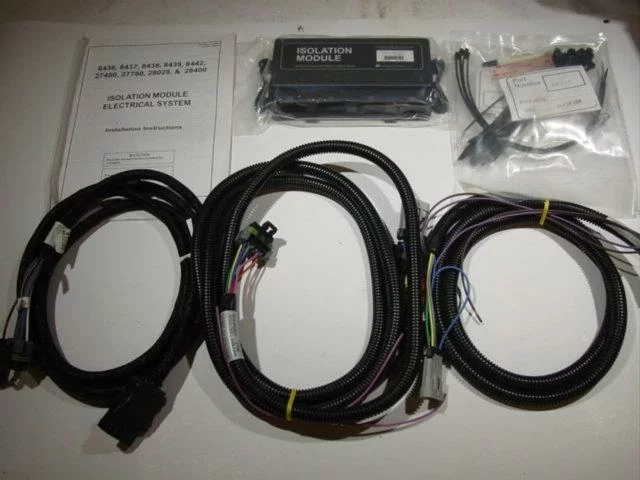

The part # on this kit is 28028. We have all the others available, too. You get the 4-port module 26400, 26357 truck side 11-pin light harness, light harness 28030 & 28032, battery adapters 22381 and parts bag 26395.
If you are just swapping trucks, you probably only need the light harness and not the complete kit. But if you need a module too, the kit is the best deal. This is the same for Fisher and Western. This is the 4-port isolation module and the 3-plug set up.
Western went from relay wiring to 4-port wiring, to 3-port wiring and now Multiplex wiring. We have all of these options available. We will also trade in your old wiring.
We recommend getting a tube of dielectric grease to protect these plugs.
Click here to use the Western Power Match to get the correct light harness.
Here is a link to the Western Wiring Schematics Guide.
Below is the list of trucks this kit was used on:
2009, CHEVY/GMC, TRAILBLAZER/ENVOY
2008, CHEVY/GMC, TRAILBLAZER/ENVOY
2007, CHEVY/GMC, TRAILBLAZER/ENVOY
2006, CHEVY/GMC, TRAILBLAZER EXT/ENVOY XL
2006, CHEVY/GMC, TRAILBLAZER/ENVOY
2005, CHEVY/GMC, ENVOY XUV
2005, CHEVY/GMC, TRAILBLAZER EXT/ENVOY XL
2005, CHEVY/GMC, TRAILBLAZER/ENVOY
2004, CHEVY/GMC, TRAILBLAZER EXT/ENVOY XL
2004, CHEVY/GMC, TRAILBLAZER/ENVOY
2003, CHEVY/GMC, TRAILBLAZER EXT/ENVOY XL
2003, CHEVY/GMC, TRAILBLAZER/ENVOY
2002, CHEVY/GMC, TRAILBLAZER EXT/ENVOY XL
2002, CHEVY/GMC, TRAILBLAZER/ENVOY
Plow Brand | Western, Fisher |
---|
