This is the updated cylinder with no split ring. The non-1 cylinders should be replaced. The split ring was faulty, causing metal to get in the down valve stopping some plows from being able to raise. The non -1 cylinders made prior to July 1st 2019 are fine, the bad ones were made between that date and early 2021. If you have a bad one they are covered under waranty.

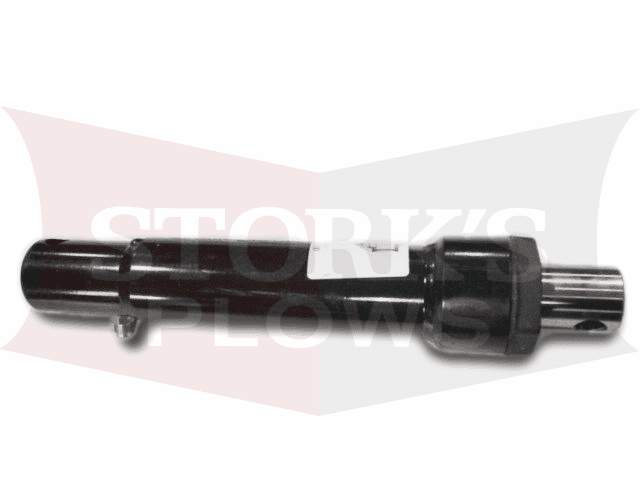

This is a New Genuine Western Heavy Duty Lift Cylinder. This is the updated -1 version. This cylinder is used on the new Western MVP3 and the Pro plus HD plows. It is considered a 1-3/4 x 8" cylinder used on all the MVP 3 V plows (part # 43149-1.) It uses the O-ring style fittings. There is a port on the side in line with the pin hole.
This could be used to upgrade the standard lift on other plows as well.
This is a low friction cylinder. They do not use a compression packing, but an O-ring sealed nut.
This has 3/4" holes for the pins. Center to center closed on the pin holes is 15 1/4".
The tank is 14.5" from end to end including the nut.
The chrome rod is 1.75" across.
If you need the part to fix yours, the seal kit is 77924 and the gland nut is 43135.
