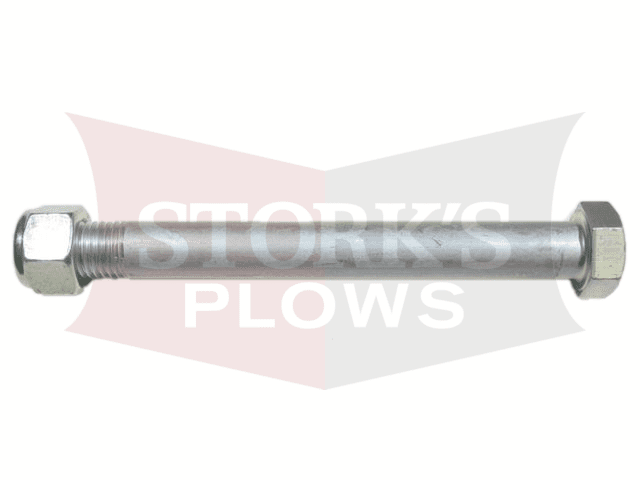

50668 Western Fisher A-Frame Pivot Bar Bolt Kit 1"x9.5"

A New A-Frame Pivot Bar Bolt Kit. This is a 1" bolt. Not including the head it is 9.5" long. The threads are just under 1-3/4". So the shank is 7-3/4".

This is used on a few different plows. This is the same as a Blizzard 41119. The Western and Fisher part # is 50668.

The bolt goes by # 50605 and the nut goes by # 91340.

Fisher uses this on the HD2, XLS, and Skid steer plows.

Western uses this on the Wideout and Wideout XL.

For an example of its placement in the A-frame assembly, check this link.
