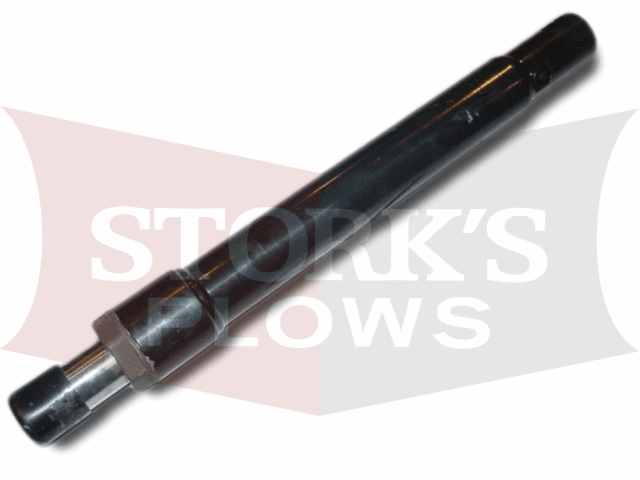

56603 New Genuine Fisher RD HD X Blade 1.5x12 Angling Cylinder 1 Hole

This is a New Genuine Fisher Angling Cylinder, This was used on the RD, HD and X blades. Make sure yours uses the O-ring style SAE threads, if you have pipe thread you need 20117K instead. The Fisher part # is 56603 or 56603K. This has 1" pin holes (not 3/4), the cylinder is a 1.5"x12". The 12" is the movement of the cylinder. In the closed position it measures 19.5" from center to center on the hole. From end to end the tank including the nut is 18.25". The port for the hose is an SAE thread not pipe.

This is a low friction angling cylinder so it does not use the normal compression packing.

These came in 2 Fisher kits - 9840-2 and 27670.
