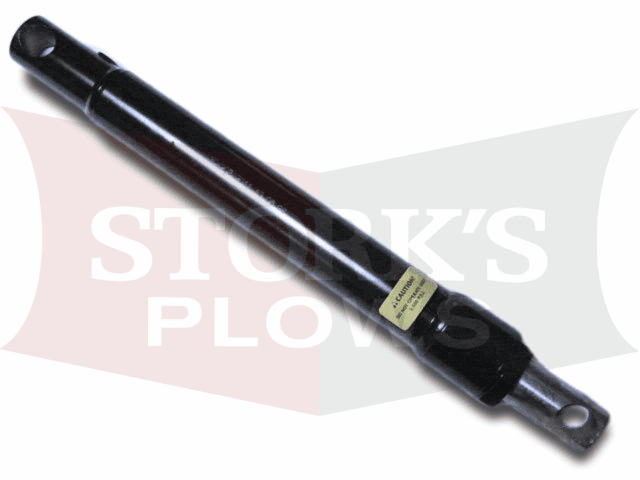

This is a new Aftermarket Fisher Angling Cylinder. It was used on the RD, HD and X blades.

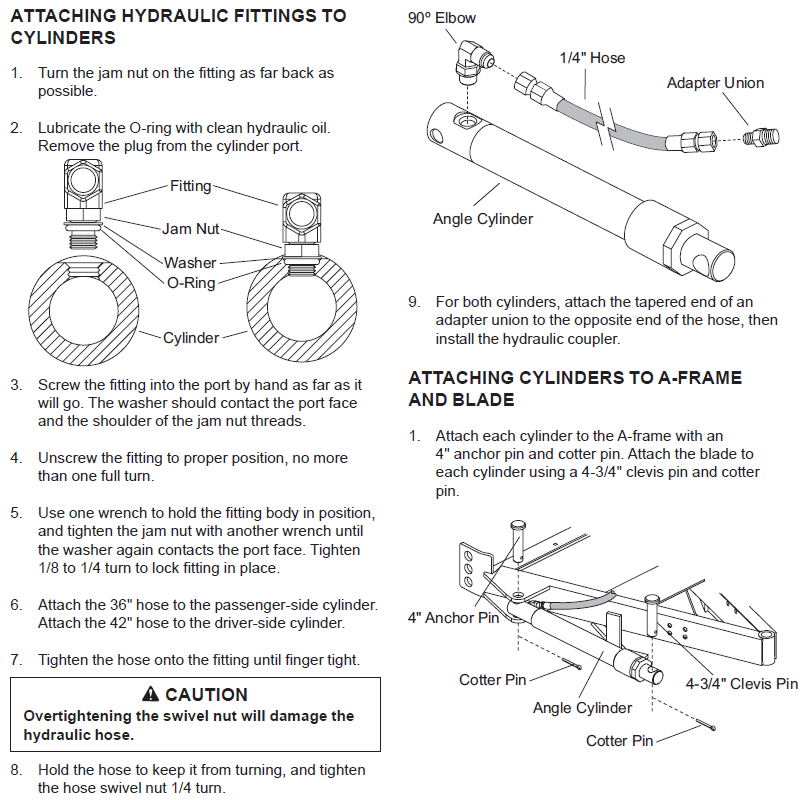

This is a new Aftermarket Fisher Angling Cylinder. It was used on the RD HD and X blades. Make sure yours uses the O ring style SAE threads. If you have pipe thread, you need 20117K instead. The Fisher part # is 56603 or 56603K and the aftermarket # is 1304212.
This has 1" pin holes (not 3/4). The cylinder is a 1.5"x12". The 12" is the movement of the cylinder. In the closed position it measures 19.5" from center to center on the hole. From end to end, the tank including the nut is 18.25". The port for the hose is an SAE thread - not pipe.
This is a low friction angling cylinder, so it does not use the normal compression packing.
These came in two Fisher kits 9840-2 and 27670.
