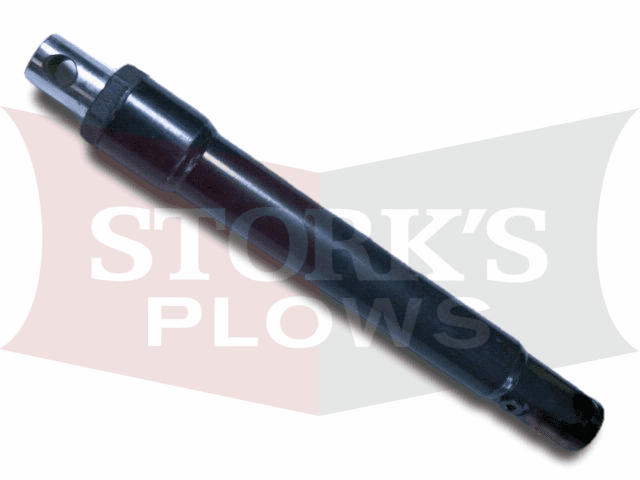

A New Genuine Western Angling Cylinder. This one came on the Ultramount Standard and Pro Plow. There was more than one option through the years, so make sure it is the correct one. We have others, if it is not. The Western part # is 56614. This is the earlier one that uses 3/4" pins. The later series 2 plows take 1" pins and need part # 64706 instead.
The cylinder is a 1.5"x10".
The 10" is the movement of the cylinder.
In the closed position it measures 17" from center to center on the hole.
From end to end the tank including the nut is 16.7".
The pin holes are 3/4".
The hose port is in the side of the cylinder.
The holes for the hose are the newer O-ring style port.
