65622 New Western Fisher Salt Spreader Chute 31†Steel High Capacity 9107

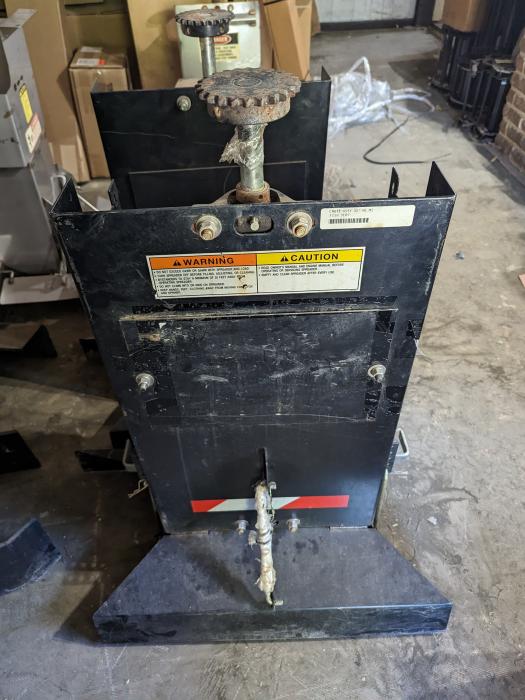

A New 31" High-Capacity Spreader Chute # 65622.
A New tall 31" High-Capacity Spreader Chute Western # 65622 Fisher # 9107. This is also Available in Stinless steel, 68920.
If you need the shorter 19" one that is Western 65622 and Fisher 9107 steel or 68921 In stainless. This is a chain drive version not belt drive.
This chute is for a Western Ice Chaser or Fisher Steel-Caster spreader. If you want the stainless steel version that is # 68921. We also have many other spreader chutes, if this is not the one you need. This is a chain drive spinner.
Below are the Instructions:
Western Stainless Steel Chute Assembly High-Capacity (65621, 65622, 68920, 68921)
This Chute is made up of these peices that we often sell seperate as well.
65632 / 20318 Housing
65633 / 20320 Spinner shaft
65635 / 20321 Spinner Disc
65636 Bearing
65637 Sprocket
65174 Machine Key 20324
65199 Control Rods 9195
65206 Adjustment pins
68817 Rear baffel
68900 DS baffel
68874 PS baffel kit
Part type | Chutes |
---|---|
Spreader Brand | Western, Fisher |
Spreader Drive Type | Gas Engine |
Spreader Style | Inbed |
Spreader Feed type | Pintle / Drag Chain |
