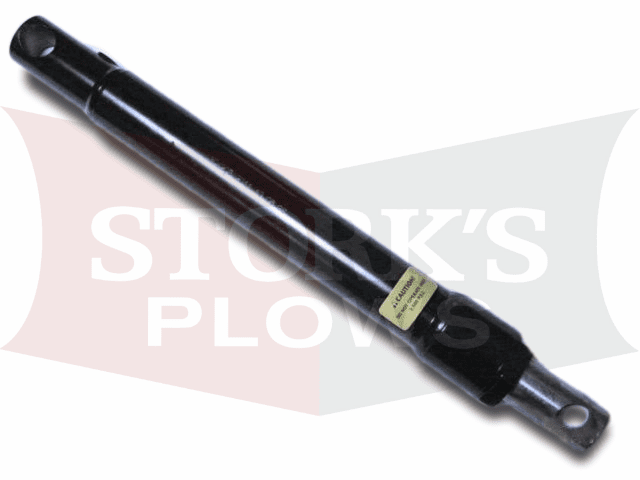

84421 Aftermarket SnowEx Angling Cylinder HD SW PP Blade 1.5x12 Ram SA15

A New Aftermarket SnowEx Angling Cylinder. It was used on the HD, 8600SW, 8100PP and 8611PP blades. This is a direct replacement for the original 84421.

This has 1" pin holes. The cylinder is a 1.5"x12". The 12" is the movement of the cylinder. In the closed position, it measures 19.5" from center to center on the hole. From end to end, the tank including the nut is 18.25". The port for the hose is on the side of the pin hole and is an SAE thread.
