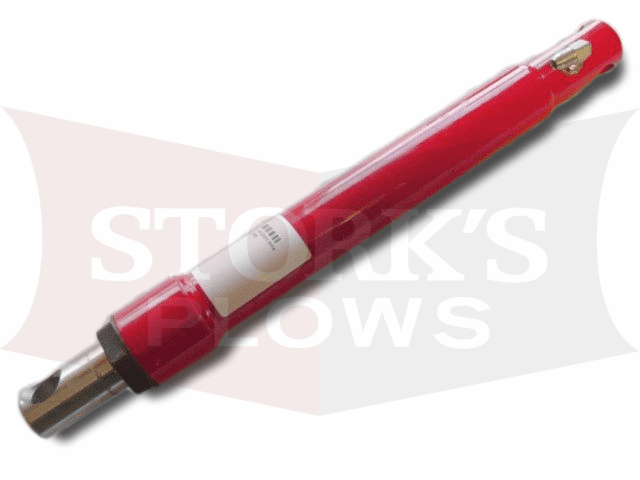

84421 SnowEx Angling Cylinder HD SW PP Blade 1.5x12 Ram

A New Factory SnowEx Angling Cylinder. It was used on the HD straight blades, 8600SW, 8100PP and 8611PP blades.

This has 1" pin holes. The cylinder is a 1.5"x12". The 12" is the movement of the cylinder. In the closed position, it measures 19.5" from center to center on the hole. From end to end, the tank including the nut is 18.25". The port for the hose is on the side of the pin hole and is an SAE thread.
