B40123 Blizzard Draw Latch Finger Hook PH1 HD Plows

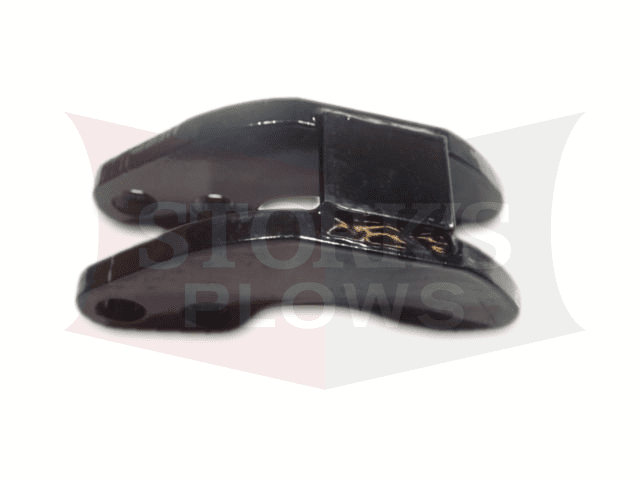

Draw Latch Finger B40123. This is part of Draw Latch Assembly B40109.
This is for the Power Hitch 1 Blizzard HD plows. It is for the full size Power Hitch 1 plows only. We do sell every piece separately.
The plates are 1/2" thick, overall length is 7-1/8" long and there are 2 x 3/4" holes in it.
This is the assembly. It is made up of the parts below:
43 B40080 Outer Draw Latch DS
44 B40110 1x 6-1/2 (13/16 cotter hole) Draw Latch Pin
45 B61363 3/16x2-1/2 Cotter Pins
46 B61004 3/4 x 4.5 Hex bolt
47 B40074 Inner Draw Latch Plates
48 B40070 1x4-21/32 Draw Latch Mount Pin
49 B40114 Draw Latch Arm
50 B40123 Draw Latch Finger
51 B40042 3/4x2-1/2 Inner Draw Latch Plate Pin
52 B40093 1-1/4 OD 1-1/16 ID x1-1/2 Bushing
53 B40081 Outer Draw Latch PS
54 B50071 3/4 x 3-41/64 Clevis Pin
55 B40116 1 OD 25/32 ID x 5/8 Spacer
56 B61006 3/4-10 Lock Nut
