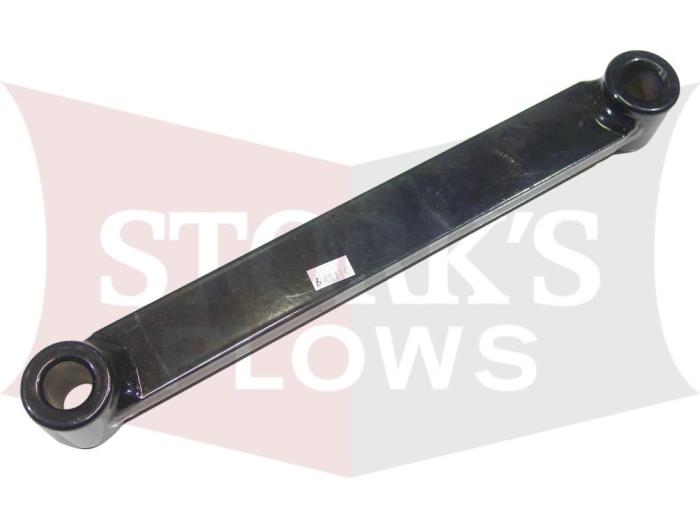

B40114 Blizzard Draw Latch Arm Weldment Plate 810, 8611, 810PP
Inner Draw Latch Arm # B40114 for the Power Hitch 1 Blizzard Power Plows.
This fits the 810PP, 8611LP, 8611PP. Fits the full size Power Hitch 1 plows only.
It is part of Draw Latch Assembly B40109. We do sell every piece separately.
This is 13" long overall, 11.5" center to center on the holes and the holes are 3/4" on both ends.
This is the assembly. It is made up of the parts below:
43 B40080 Outer Draw Latch DS
44 B40110 1x 6-1/2 (13/16 cotter hole) Draw Latch Pin
45 B61363 3/16x2-1/2 Cotter Pins
46 B61004 3/4 x 4.5 Hex bolt
47 B40074 Inner Draw Latch Plates
48 B40070 1x4-21/32 Draw Latch Mount Pin
49 B40114 Draw Latch Arm
50 B40123 Draw Latch Finger
51 B40042 3/4x2-1/2 Inner Draw Latch Plate Pin
52 B40093 1-1/4 OD 1-1/16 ID x1-1/2 Bushing
53 B40081 Outer Draw Latch PS
54 B50071 3/4 x 3-41/64 Clevis Pin
55 B40116 1 OD 25/32 ID x 5/8 Spacer
56 B61006 3/4-10 Lock Nut
Truck Manufacturer | Chevy/GMC, Dodge/Plymouth, Ford, International, Jeep, Mazda, Mitsubishi, Nissan, Toyota, UTV |
---|
