B60341 810SS Blizzard Loaded Valve Block Manifold Assembly 60354 B62161

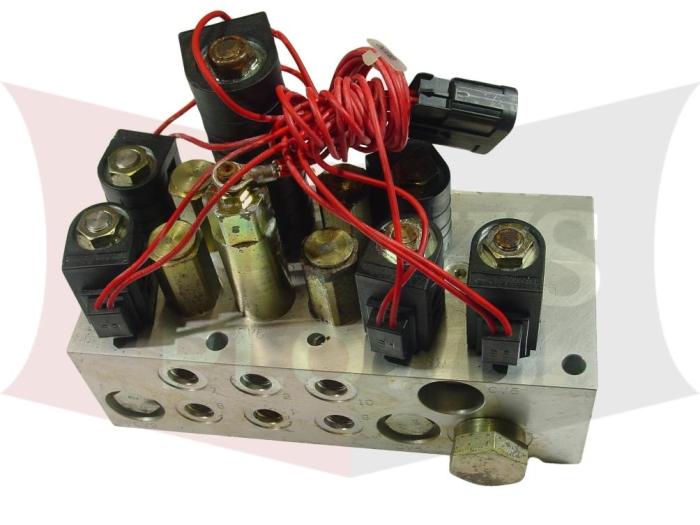

A New Blizzard Loaded Valve Block Manifold Assembly with Cross Port Relief Clear Anodized Aluminum B60341 60341
A New Blizzard Loaded Valve Block Manifold Assembly for the 810SS plows. To identify this, it is Anodized Aluminum. These are used on the Blizzard 810SS (Skid Steer) Plows, the bigger 8611 plows use a gold aluminium.
This set up runs off the machines pressure it has ports in the end for the fluid to flow through.
Part # is B60341
You can find the Parts List at this link.
Includes:
60354 - Manifold Block Clear Anodized Aluminum
B60320 - Spool Valve 2-Way
B60356 - Back-Pressure Check Valve 5 PSI
B60183 - Pressure Compensation Regulation Valve
B60225 - Check Valve 50 PSI X 4
B60279 – Relief Valve 1500 PSI X 2
B60168 - Relief Valve 3000 PSI
B60166 - Spool Valve – 3-Way, 2-Position X 4
B60321 - Spool Valve – 4-Way, 3-Position
B60278 – Relief Valve 1700 PSI X 2
B62161 - Coil Harness Assembly
