Used 61440 Chevy GMC Truck 88-94 4x4 Western Unimount Plow Frame 1545

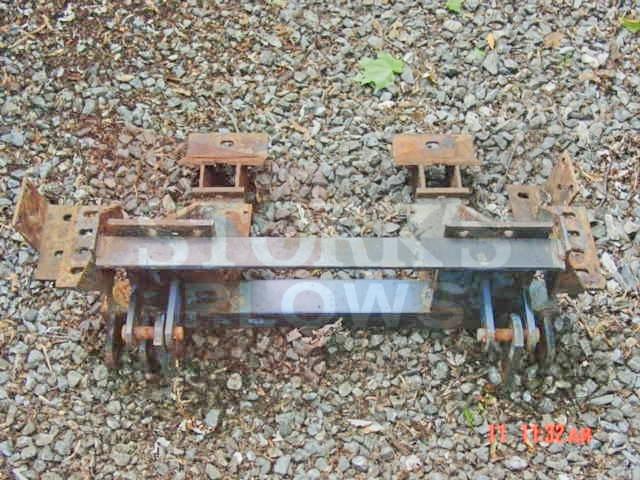

This is a used Original Western Unimount for a 1988-1994 Chevy/GMC 4x4. The part # on this mount is 61440 (box # 1545.) This is a heavy duty mount. It only fits up to 1994 because it interferes with the air bag sensors they installed in the 1995 and later trucks. If you have a truck with over 8500 GVW, it may not have air bags and this can be used on later years. This mount is much stronger than the replacement mount 62330. This does not fit Suburbans and Blazers before model year ‘91 . There is no hardware included, just the mount pieces. All hardware, lower pins, and this mount used the shorter link arms at this link .They are also available in our store. The 2WD Chevy uses a different mount. This one will not fit but we have them listed, too.

With this mount, you are getting Mount Frame 61431, 2x Thrust Arms 61365, Spreader 61374 and Formed Ribs 62228 and 62229.

Here is a link to the parts list and installation instructions for the Unimount 61440.

If you also need wiring, this range of trucks had many headlight options 2B, HB3-HB4, and LF/UF.

2B single glass sealed beam (With DRL Harness 61556, Kit 61555). Without DRL 61546 Harness, and the 61545 Kit.

HB-3/HB-4 plastic lens with replaceable bulbs (with daytime running lights Harness 61586, Kit 61585). Without DRL 61716 Harness , 61515 Kit.

LF/UF Glass sealed beam with DRL Harness 61581 -Modified, Kit 61560. Without DRL Harness 61581, Kit 61580.
