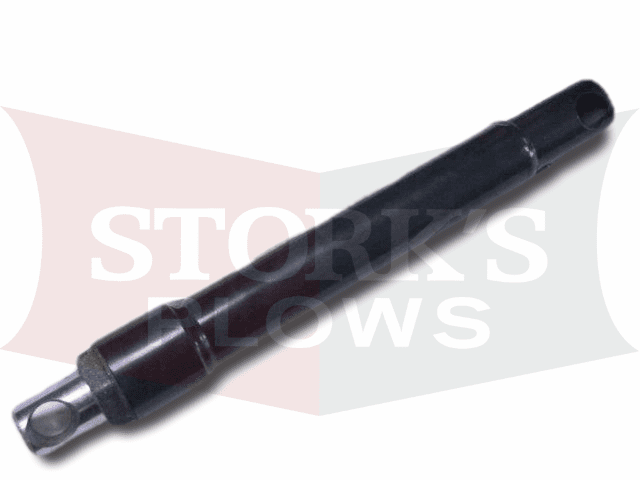

40555 New Aftermarket Blizzard 7600LT 8000LT 1.5x10 Angling Cylinder 1" Hole Angle SA27

This is a New Aftermarket Blizzard Angling Cylinder (part # 40555) used on the newer model Blizzard LT plows - both the 7600LT and the 8000LT.

The cylinder is called a 1.5"x10".

The 10" is the movement of the cylinder.

In the closed position, it measures 17" from center to center on the hole.

From end to end, the tank including the nut is 16.75".

The pin holes are 1".

The hose port is in the side and it is the newer o-ring style port.
