61570 Western Unimount HB-1 9004 Headlight Harness Kit Ford F150 F250 F350 Bronco 9 Pin

Western no longer sells this kit, once we sell our inventory they will not be available anymore.

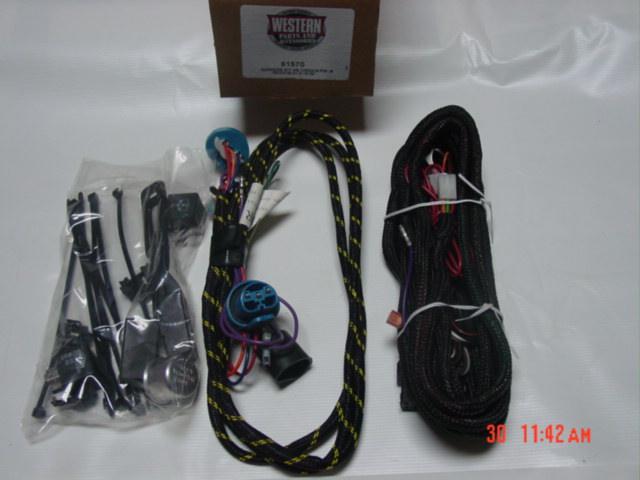

Here is a new wiring set-up for vehicles with HB1 (9004) headlights with Western Unimount or Fisher MM. This comes with the 9 pin relay style control harness 61437, headlight harness 61571 Western (or 8266 Fisher) and the small parts bag. If you don't have the power harness, you will need to add that to the cart too. Don't forget to add a tube of dielectric grease to protect these plugs. Take a look at the headlights in your vehicle, which will have some #'s stamped in the lenses and make sure it says HB1. Bulb will say 9004.

To make sure you are getting what you need, you can use this Wiring Schematics Guide.

These were used in 1980-1991 Ford F150, F250, F350 and Bronco.
