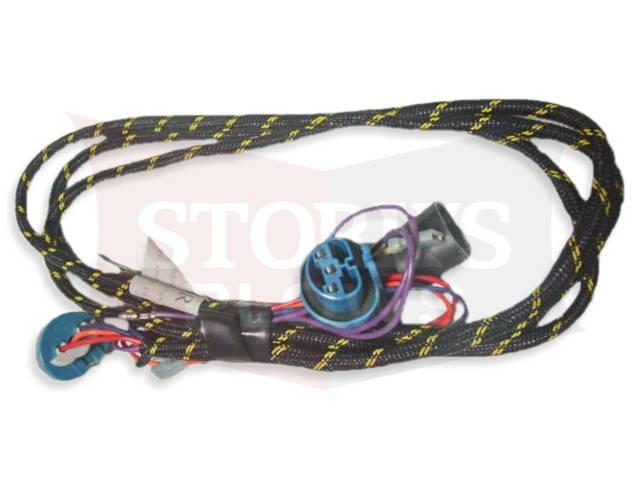

61571 Western Unimount HB-1 9004 Headlight Harness Ford F150 F250 F350 Bronco Toyota 9 Pin 8266 Fisher
Here is a new light wiring harness for vehicles with HB1 (9004) headlights with Western Unimount or Fisher MM snowplows. This is the relay style wiring. Headlight harness 61571 Western (or 8266 Fisher.) If you don't have the power harness, you will need to add that to the cart too.
Here is a new light wiring harness for vehicles with HB1 (9004) headlights with Western Unimount or Fisher MM snowplows. This is the relay style wiring. Headlight harness 61571 Western (or 8266 Fisher.) If you don't have the power harness, you will need to add that to the cart too. Don't forget to add a tube of dielectric grease to protect these plugs. Take a look at the headlights in your vehicle. They will have some #'s stamped in the lenses. Make sure it says HB1. Bulb will say 9004.
To make sure you are getting what you need, you can use this Wiring Schematics Guide.
These were used in: 1980-1991 Ford F150, F250, F350 and Bronco, Toyota Tacoma & 4Runner with HB-1.
Plow Brand | Western, Fisher |
---|---|
Truck Manufacturer | Ford |
Western/Fisher wiring types | Relay Style |
