63420 Western Unimount HB-5 Headlight Harness Kit Ford F150 Super Duty Excursion 99-04

Here is a new wiring set up for vehicles with HB5 headlights (plastic lens with replaceable bulb) with Western Unimount or Fisher MM With 9 pin plow side plug.

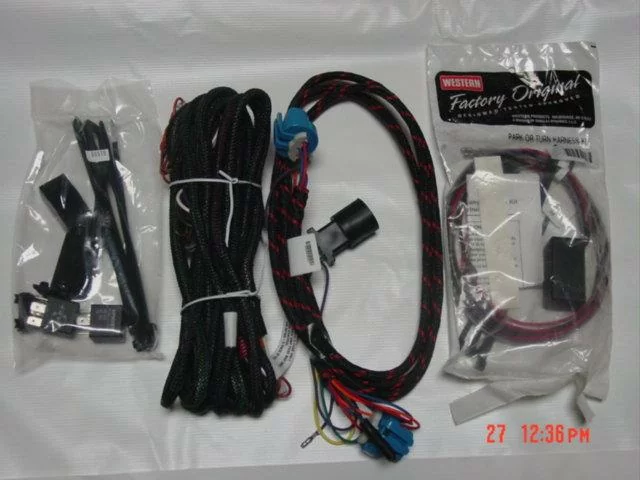

This is the 9 pin relay style control harness 61437, headlight harness 61591 Western or 8269 Fisher and parts bag 61559. This also comes with the 61185 park and turn harness module kit. Both Western and Fisher recommend these for th '97 and newer Fords. If you don't have the power harness, you will need to add that to the cart too. Or if you only need the light harness, we have that listed on its own. The only difference between this kit and the 61590 is the 61185 overload module. Take a look at the headlights in your vehicle, they should have HB5 stamped in the lens.

Note: If your plow side has a 12 pin plug, you will need to change that to a 9 pin. Don't forget to add a tube of dielectric grease to protect these plugs.

Here is a link to the install instructions for the 61185 park turn kit.

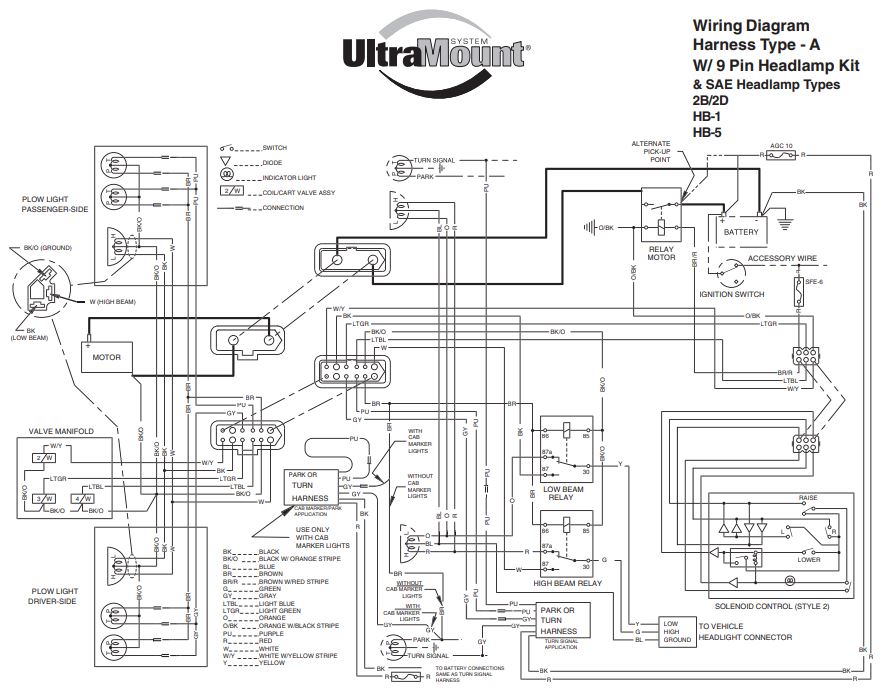

Here is a link to the Western Wiring Schematics Guide.

This kit is for 97+ F150 and Expedition 99-2004 Ford Super Duty F250, F350, F450, F550, Excursion.
