7125 Chevy GMC Truck 88-2000 2500 3500 4x4 Fisher Minute Mount Plow
A New Fisher Plow Mount 7125 for both the Fisher Minute Mount 1 and Minute Mount 2. This is for the 1988-1998 Chevy GMC 4x4 2500 with the 8600 GVW and 3500 trucks.* If your GVW is lower than the 8600 or you have a 1500, then you need mount # 7138.

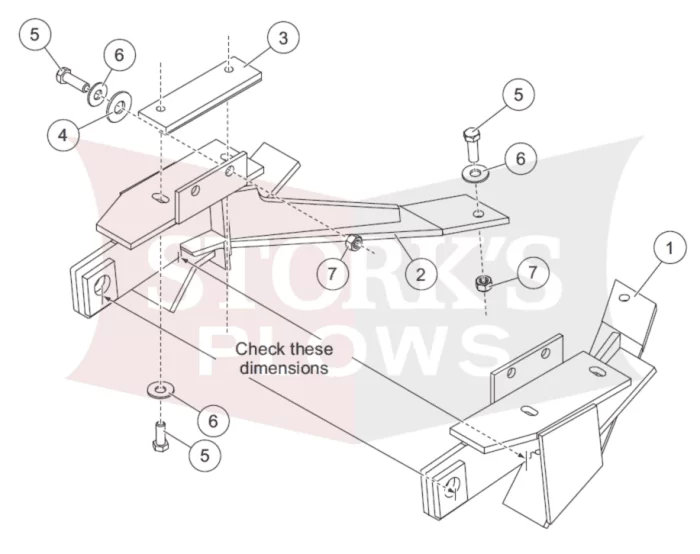

With this mount you get: Driver Side Push Plate 8767, Passenger Side 8768, 2x Bolting Bars 20390 and Bolt Bag 8863.
*some of the 2500 and 3500 trucks used this "Classic" body as late as 2000.
Here is a link to the Parts List.
Here is a link to the Installation Instructions.
If you also need Headlight wiring, here is a chart to help.
Relay wiring -
For 2B single glass sealed beams with Daytime Running Lights (DRL), you need harness 61556 or kit 61555). Without DRL, you need 61546 harness or 61545 kit.
For HB-3/HB-4 plastic lenses with replaceable bulbs and DRL, you need harness 61586 or kit 61585). Without DRL, you need 61716 harness or 61515 kit.
For LF/UF glass sealed beams with DRL, you need harness 61581 -Modified or kit 61560. Without DRL, you need harness 61581 or kit 61580.
4 port module -
For 2B single glass sealed beams, you need kit 8439 or harness 26353 & 2635.
For HB-3/HB-4 plastic lenses with replaceable bulbs, you need kit 8438 or harness 26352 & 26351.
For LF/UF glass sealed beams, you have kit 28400 & B62225-1 or harness 28244, 28242 & B62225.
3 port module -
For 2B glass sealed beam 3-port, you need harness 28464 or kit 29051.
For HB-3/HB-4 Plastic Lens with replaceable bulbs, you need harness 28253 or wiring kit 29048.
For LF/UF glass sealed beams, you need kit 29049 & B62225-1 or harness 28986 & B62225.
2000, CHEVY/GMC, K2500 CLASSIC
2000, CHEVY/GMC, K3500 CLASSIC
2000, CHEVY/GMC, SUBURBAN K2500
1999, CHEVY/GMC, K2500 CLASSIC
1999, CHEVY/GMC, K2500HD CLASSIC
1999, CHEVY/GMC, K3500 CLASSIC
1999, CHEVY/GMC, SUBURBAN K2500
1998, CHEVY/GMC, K2500 CLASSIC
1998, CHEVY/GMC, K2500HD CLASSIC
1998, CHEVY/GMC, K3500 CLASSIC
1998, CHEVY/GMC, K3500 CLASSIC (St Frame)
1998, CHEVY/GMC, SUBURBAN K2500
1997, CHEVY/GMC, K2500 CLASSIC
1997, CHEVY/GMC, K2500HD CLASSIC
1997, CHEVY/GMC, K3500 CLASSIC
1997, CHEVY/GMC, SUBURBAN K2500
1996, CHEVY/GMC, 3/4 TON SUBURBAN (2500)
1996, CHEVY/GMC, K2500 HEAVY DUTY
1996, CHEVY/GMC, K3500
1995, CHEVY/GMC, 3/4 TON SUBURBAN (2500)
1995, CHEVY/GMC, K2500 HEAVY DUTY
1995, CHEVY/GMC, K3500
1994, CHEVY/GMC, 3/4 TON SUBURBAN (2500)
1994, CHEVY/GMC, K2500 HEAVY DUTY
1994, CHEVY/GMC, K3500
1993, CHEVY/GMC, 3/4 TON SUBURBAN (2500)
1993, CHEVY/GMC, K2500 HEAVY DUTY
1993, CHEVY/GMC, K3500
1992, CHEVY/GMC, 3/4 TON SUBURBAN (2500)
1992, CHEVY/GMC, K2500 HEAVY DUTY
1992, CHEVY/GMC, K3500
1991, CHEVY/GMC, K2500 HEAVY DUTY
1991, CHEVY/GMC, K3500
1990, CHEVY/GMC, K2500 HEAVY DUTY
1990, CHEVY/GMC, K3500
1989, CHEVY/GMC, K2500 HEAVY DUTY
1989, CHEVY/GMC, K3500
1988, CHEVY/GMC, K2500 HEAVY DUTY
1988, CHEVY/GMC, K3500
Truck Manufacturer | Chevy/GMC |
---|
