New Western WideOut Plow Slide Box Wing Cylinder 1-1/2x13 B60347 43803 77475

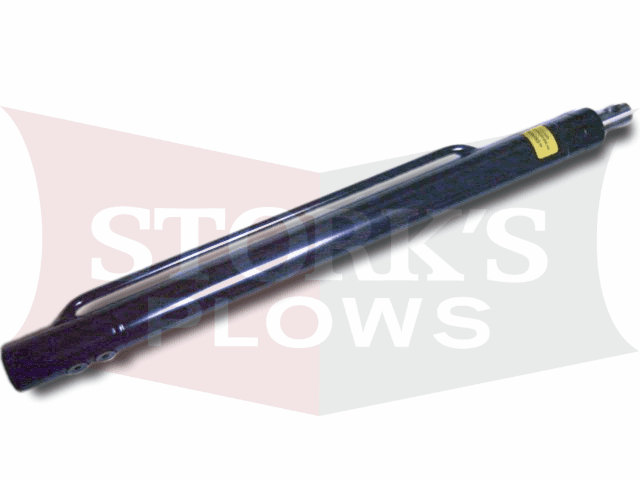

A New Aftermarket Western Wideout Slide Box Wing Cylinder.

This goes into the plow to slide the power wings in and out. It is a dual-acting cylinder, so power in power out. This is considered a 1-1/2x13-15/16. The Western part # is B60347 or 60347, the aftermarket # is 1304646. If they are pitted they should be replaced, those pits take in water and will cause freeze up in the pump. If you are looking for this you probably hit something and it's bent. Just a guess. Also get some fluid while you are at it.

If you have a factory B60347 and all you need is a seal kit, that part # is B60364.

If you are unsure here is some more info on this cylinder:

This is dual acting & has a 5/8" bolt hole in either end.

The chrome cylinder is 1" across.

End to end on the black housing is 26-1/4"

Bolt hole is 26.5 center to center.

It measures 1-3/4 across the bottom of the black housing.

This also has a tube run on the outside of the cylinder.
