63422 Western Unimount 2B-1 Headlight Harness Kit Ford F150 F250 F350 97+ Fisher MM

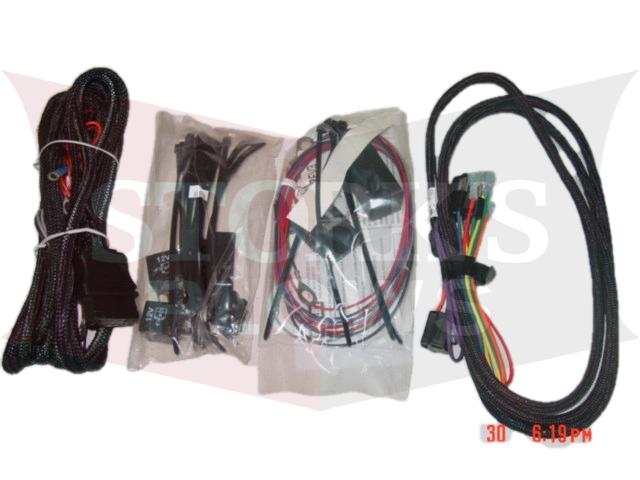

A new 63422 wiring setup for '97 and newer Ford vehicles with 2B1 (glass sealed beams) headlights for Western Unimount or Fisher MM snow plows. You get the 9-pin relay style Control Harness 61437, Headlight Harness (61546 Western or 8264 Fisher), parts bag 61559 and the 61185 overload module. If you don't have the power harness, you will need to add that to the cart too. Don't forget to add a tube of dielectric grease to protect these plugs.

Take a look at the headlights in your vehicle. They will have some #'s stamped in the lenses. Make sure it is the 2B1 glass sealed beam. If you have the HB5 plastic lens with replaceable bulb, you need kit 63420. The only difference between this and the 61545 kit is the 61185 overload module. They recommend these to protect the system from overloading.

If you already have the 9-pin control harness, use kit 63432.

Here is a link to the install instructions for the 61185 park turn kit.

If you have no DRL, use page 56 at this link. And with DRL use page 59 in this Wiring Schematics Guide.
